Use and application :
Sand recycling machine is recyclable for over 0.15mm sand. Different sand recycling machines are used in various industries, such as: artificial sand production line, washing sand production line, tailings, slurry separation engineering industry and other fields.
Working principle

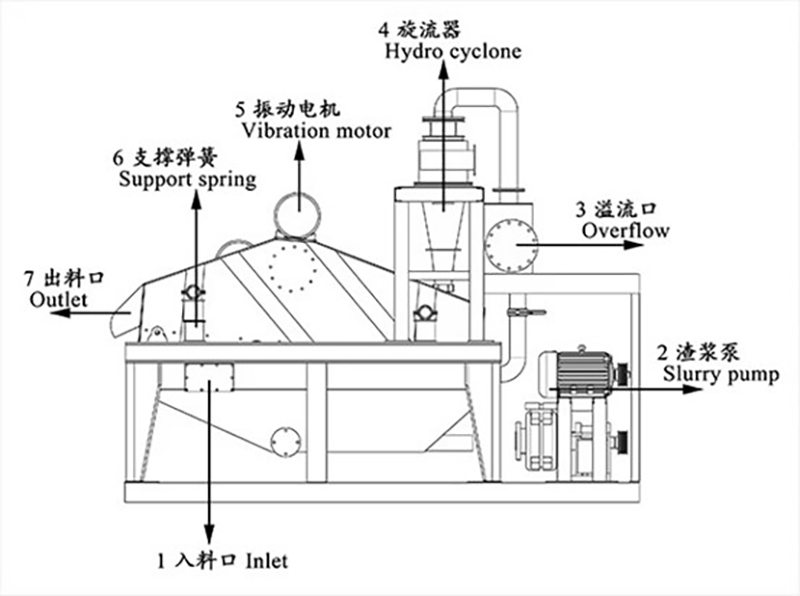

Through rubber pipes sand and water mixture is extracted from cleaning tank into slurry pump. The fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen. The waste water will flow back to the return box, through weld chute or pipes flowing to a settling pond.
Features:
1. Effectively reduce the fine sand losing quantity, and make it in the scope of 5-10%.
2. The vibrating screen utilizes polyurethane screen cloth, which has longer life compared with others and uneasy to be blocked.
3. Inner the polyurethane, strengthen the whole device service life, it can smoothly finished the work of condensing slime and clearing the liquid etc.
4. The maximum fine grain materials quantity recovered from the total effluent is 95%, so it has unsurpassed technology and economic advantage compared with other equipments.
5. The find sand are recovered sufficiently, you can reduce the sedimentation basin workload and Low its clean cost.
6. Reducing nature stock time of the fine material, they can be transferred directly and supplied to the market.
7. We can design corresponding solve project according to our consumers, different requirements.
